Field Systems
Advanced portable forensic platforms engineered for mobile forensic vehicles and on-site operations — rugged, self-contained and ready to seize data from any drive interface.

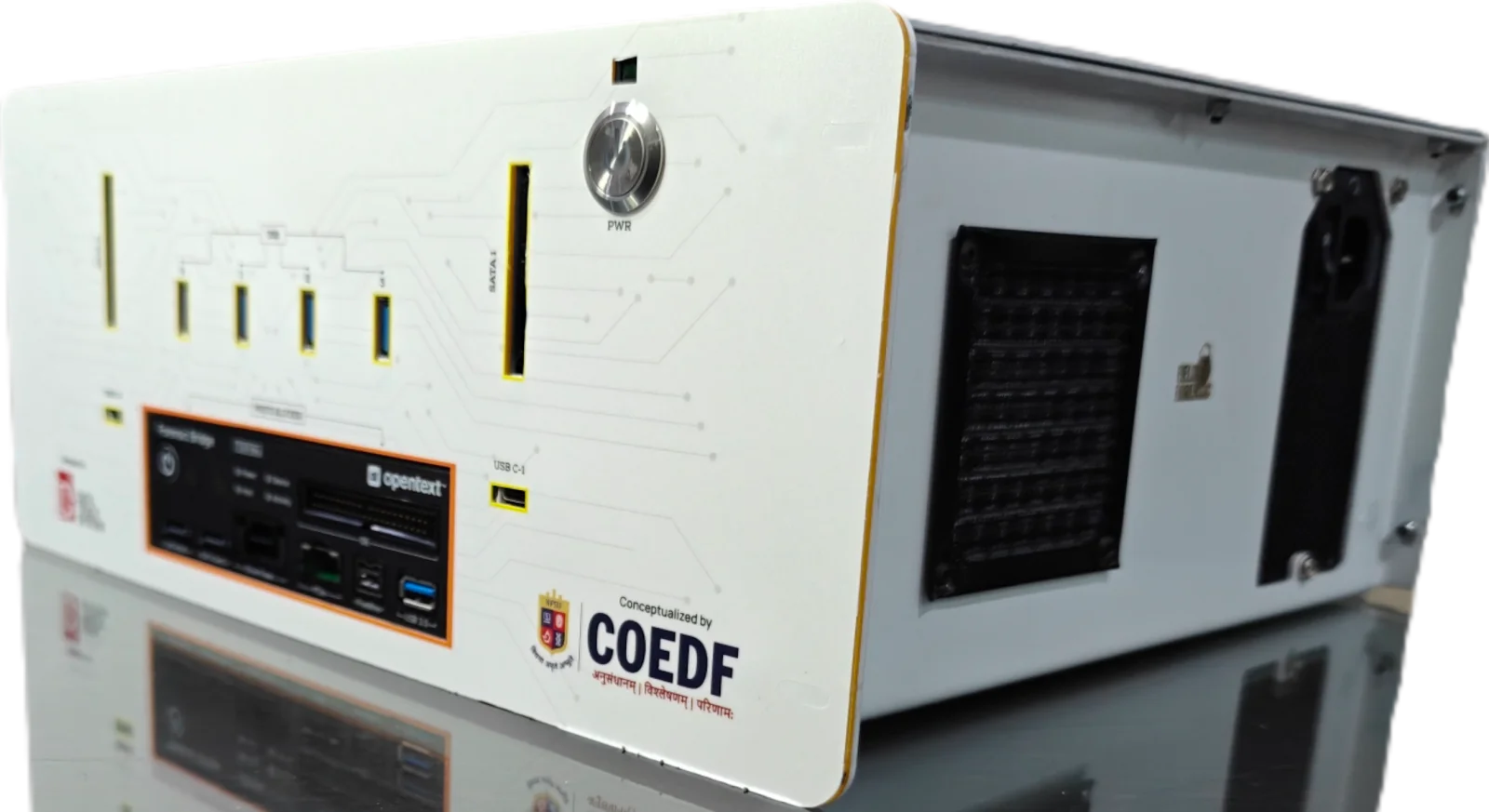

Field Forensic PRO-VN
Forensic Vehicle Node · Field Evidence Collection System
Purpose-built for mobile digital forensics operations. Combines an 8-core workstation, internal write blocker, hot-swap SATA bays, and pre-loaded acquisition software into a single ruggedized enclosure — deployable anywhere evidence is found.
Built on the same AMD Ryzen 7 platform as Field Forensic Pro, the PRO-VN is engineered specifically for integration into mobile forensic units and command vehicles — switch it on and it's ready.
Conceptualized in collaboration with COEDF · National Forensic Sciences University
Forensic Vehicle Ready
Ruggedized enclosure purpose-built for mobile digital forensics — deployable anywhere evidence is found.
Internal Write Blocker
OpenText Universal Forensic Bridge installed internally — no external cables, zero setup delay.
Hot-Swap SATA Bays
2× hot-swap SATA bays — insert or remove evidence drives without powering down.
High-Speed USB Suite
4× USB 3.x + 2× USB-C ports for write blockers, scanners, peripherals and high-bandwidth storage.
Wi-Fi 7 + Bluetooth 5.4
Latest-generation wireless for rapid data transfer and connectivity to van-based infrastructure or field networks.

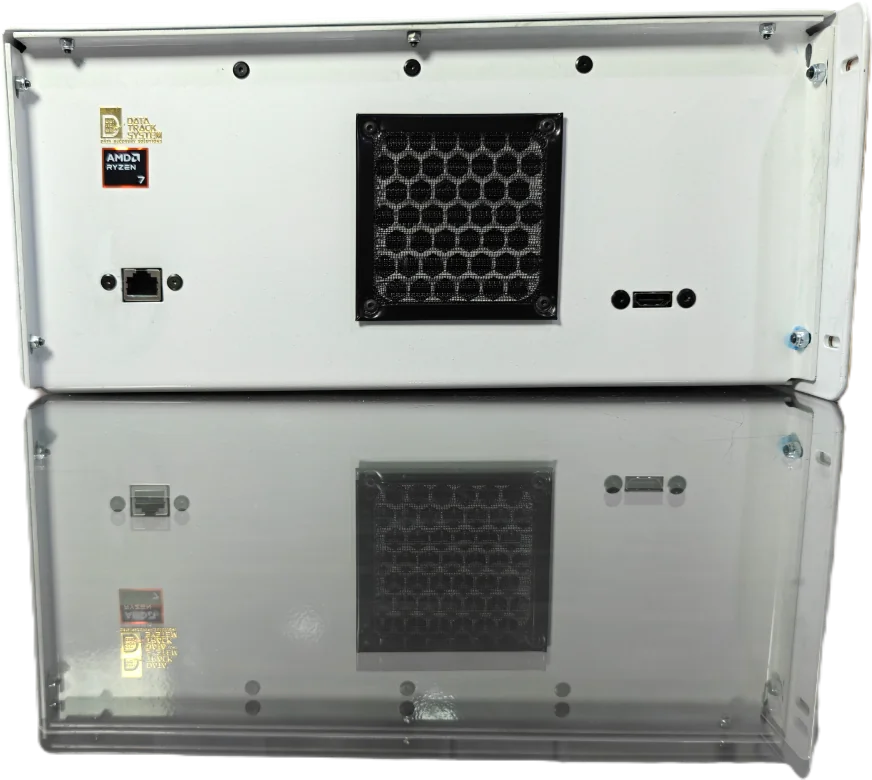

HDMI + 2.5G LAN
HDMI for external monitors and in-vehicle displays. Gigabit+ Ethernet for secure evidence upload to central servers.
Dual Ventilation Channels
Dual-channel cooling maintains peak performance in India's high-temperature environments, preventing thermal throttling.
Activity LED Indicators
Dedicated LEDs for power status and drive activity give investigators immediate visual confirmation in low-light conditions.
850W Platinum Power Supply
80 Plus Platinum-certified power supply — reliable, efficient power for sustained forensic operations.
Hardened. Connected. Immediate.

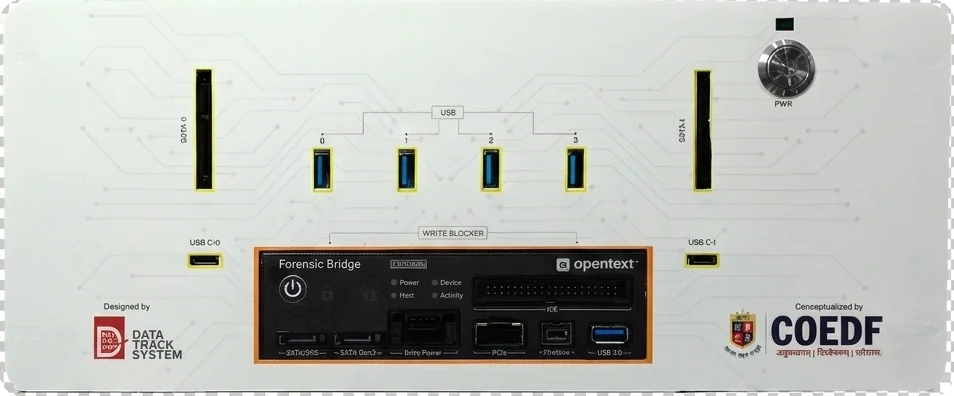

Every port, bay and connector on the PRO-VN is placed with operational intent. Hot-swap SATA bays let investigators insert evidence drives without interruption. Dual ventilation channels prevent thermal throttling during India's extreme heat. The write blocker is internal — no cables, no adaptors, no delays.
Arrives pre-loaded with a dedicated field forensic evidence collection application configured for immediate forensic vehicle deployment. Switch it on. It's ready.
Software Included
Field Forensic Evidence Collection App
Pre-loaded and configured for immediate forensic vehicle deployment — switch it on and it's ready.
Internal Write Blocker Kit
OpenText Universal Forensic Bridge protects suspect media integrity throughout acquisition.
Power & Cooling
850W Platinum Power Supply
80 Plus Platinum-certified PSU — reliable, efficient power for sustained forensic vehicle operations.
Dual-Channel Ventilation
Prevents thermal throttling in India's high-temperature environments during sustained acquisition.
Power & Drive Activity LEDs
Immediate visual confirmation of power status and drive activity in low-light conditions.
Ports & Interfaces — All ports. All protocols. All at once.
Built-In Ports
Wireless
Internal Write Blocker Interfaces
Hardware Specifications
Forensic Vehicle-Ready
Power & Activity LEDs
Made in India
Internal Write Blocker
OpenText Forensic BridgeThe OpenText T3567891U Universal Forensic Bridge is installed internally, eliminating external cables and reducing setup time to zero. Supports every common drive interface out of the box.
Field Forensic Pro
Field Forensic is not just another tool — it's a game-changer for forensic professionals. A state-of-the-art machine that handles onsite digital acquisition, examination, analysis, reporting and data recovery — all in one.
Equipped with a powerful processor, new generation DDR5 memory and NVMe storage, Field Forensic lets you simultaneously acquire data from 4 SATA and 6 USB sources — saving you precious time.
Rugged

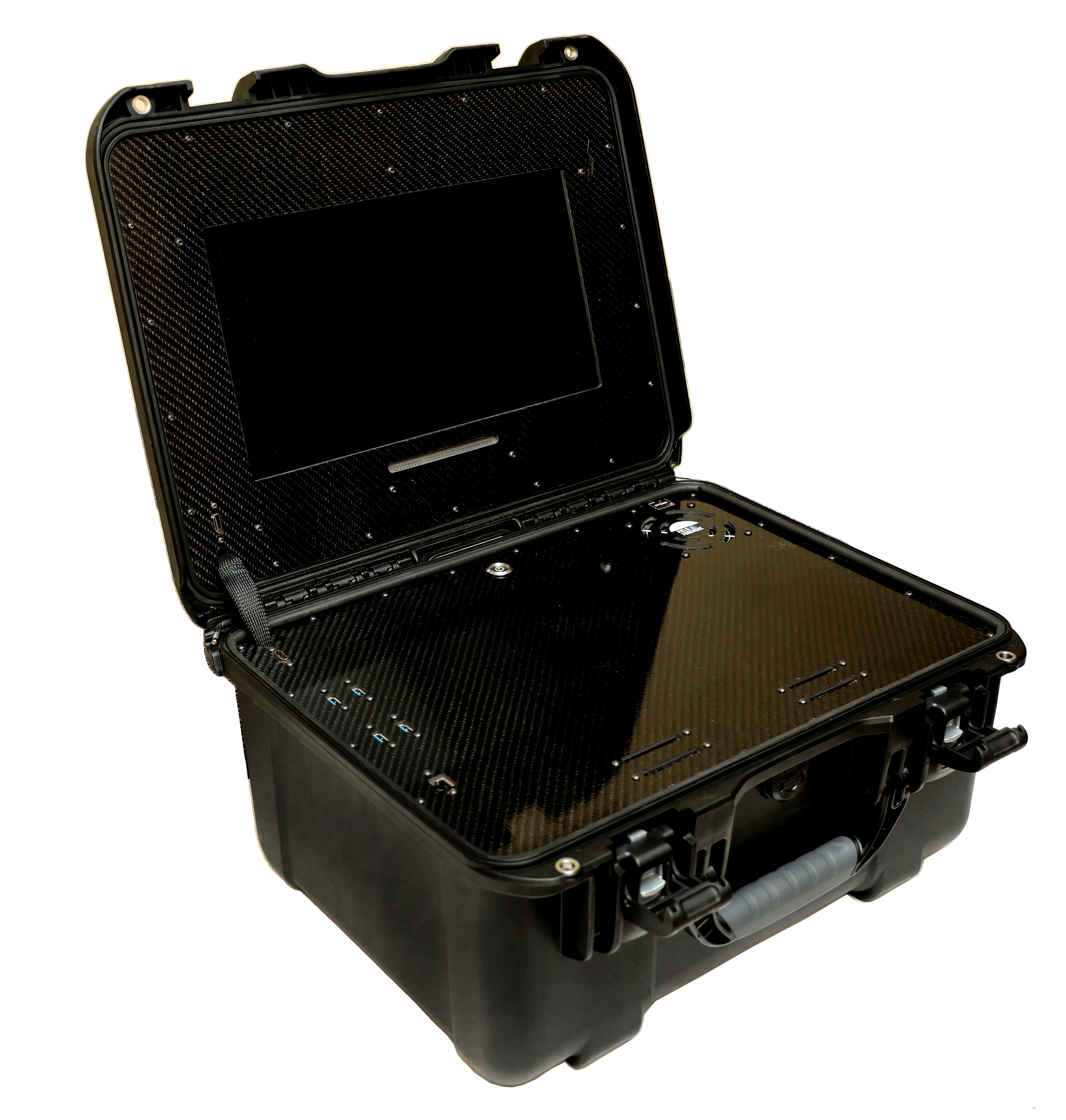

IP67-rated case — waterproof, dustproof, shock-absorbent. Carbon fiber top panel. Built for the harshest field conditions.
Compact
Dimensions: 19.9" × 16" × 10". Only 12 kg. Occupies minimal space — easy to mobilize and deploy.
High-End Processing Power
AMD Ryzen 7 (8 core, 16 threads), DDR5 memory and NVMe SSD — built for today and tomorrow's demanding forensic workloads.
Multi Drive Support
Native SATA & USB 3.x. Adapters for M.2, NVMe, IDE, Micro-SATA, Mini-SATA. Simultaneous 4 SATA + 6 USB acquisition.
Carbon Fiber Top Panel
High-strength carbon fiber panel provides the working surface — tough, lightweight and professional.
Easy to Carry
Portable carry case design with ergonomic handle. At 12 kg it's manageable for a single operator.
Forensic Acquisition
SHA-1, SHA-2 & MD5 hashing. 1:1 and 1:2 imaging modes. Write-blocked acquisition ensures court-admissible evidence.

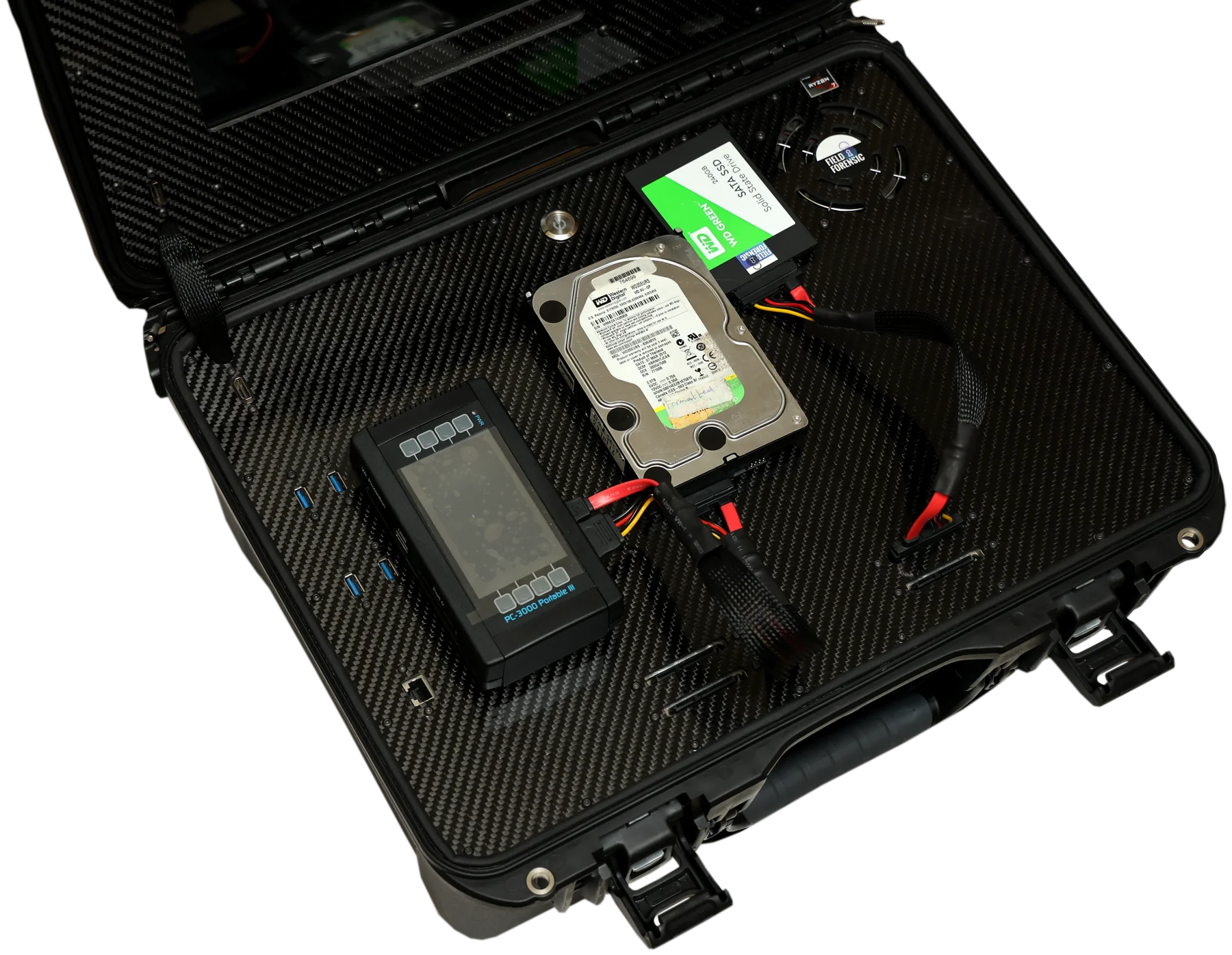

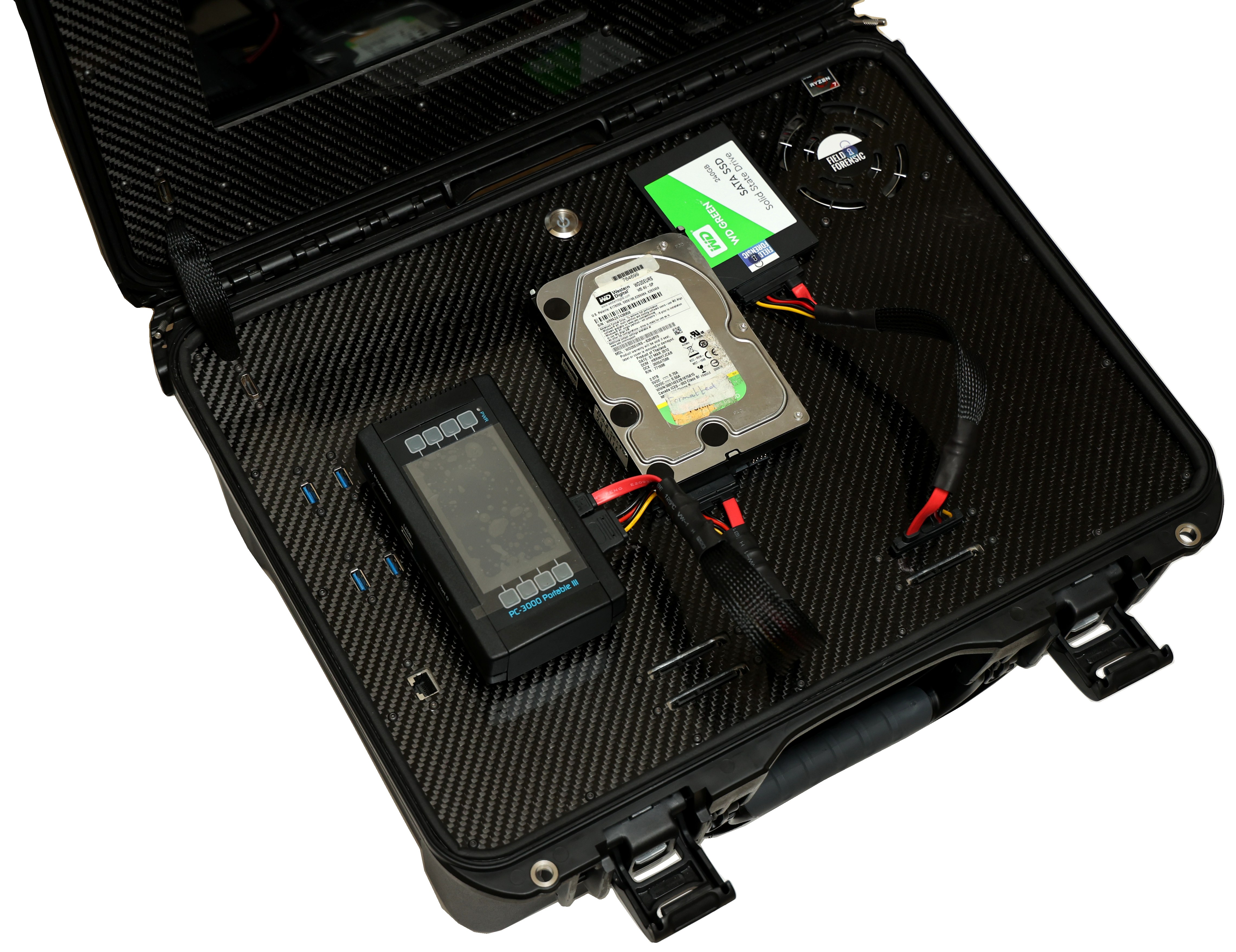

On-Site Imaging & Cloning
Full on-site acquisition, imaging and cloning capability. Upload to network storage via Gigabit Ethernet during acquisition.
Video Conferencing
Built-in webcam for video conferencing — coordinate with lab and command from the field in real time.
Cutting-edge technology meets forensic excellence
Whether you're in the lab or out in the field, Field Forensic empowers you to do your best work with confidence and precision. Because in this line of work, every second counts.
Software Included
Write Blocker Kit
Protects suspect media integrity throughout the acquisition process.
Drive Imaging & Cloning Software
Forensically-sound imaging with hash verification and multi-target cloning.
Display & Connectivity

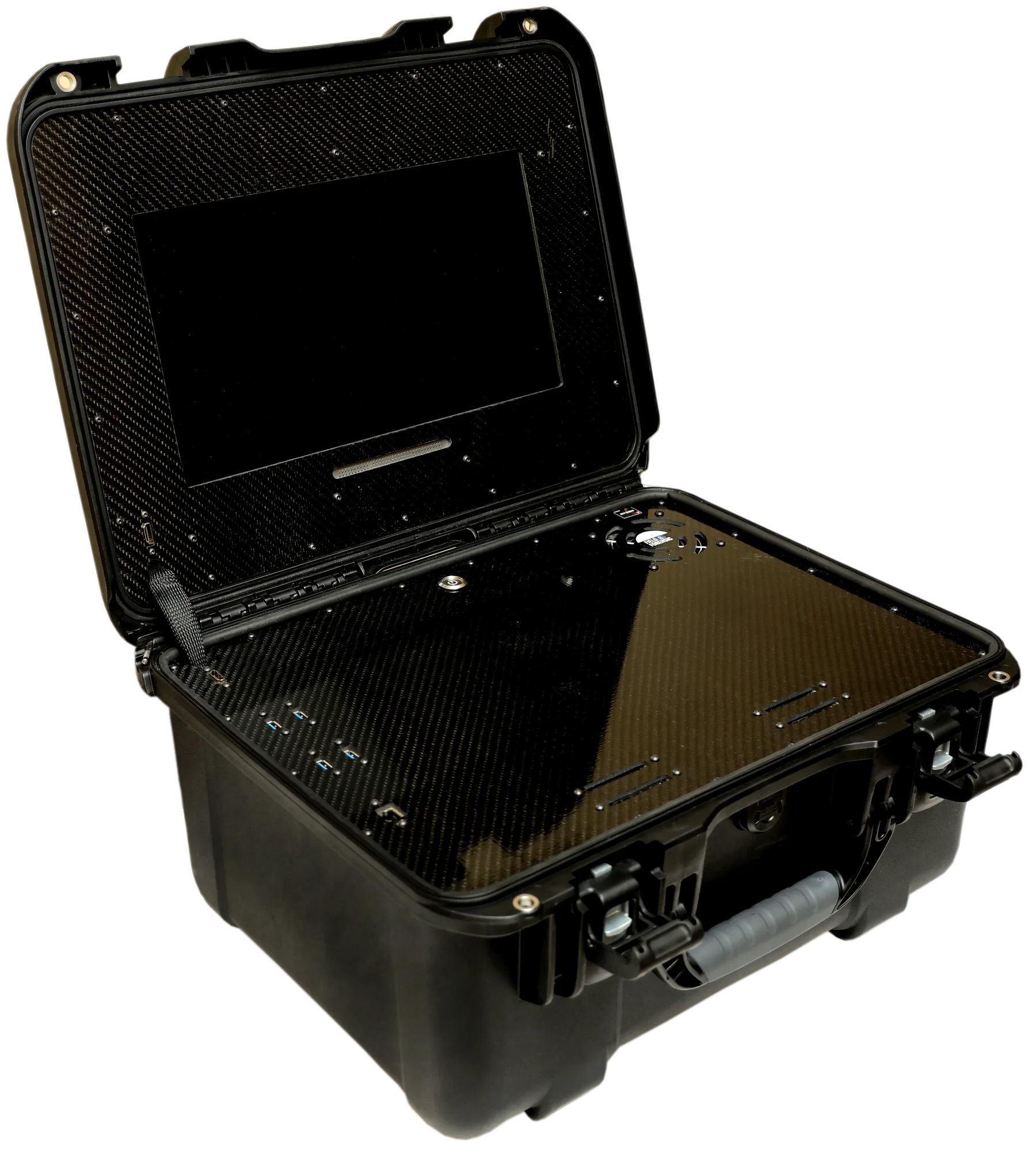

15.6" Full HD Touch Display
1920×1080 Touch TFT Color display with built-in speaker and video conferencing webcam.
Network Storage Support
Upload and download images to and from shared NAS locations using the native Gigabit Ethernet interface.
800+ Watt Power Supply
80 Plus certified PSU — reliable and efficient power for sustained forensic operations.
Ports & Drive Interfaces
Built-In Ports
Native Drive Support
Via Adapters (Optional)
Hardware Specifications
12 kg
19.9" × 16" × 10"
IP67

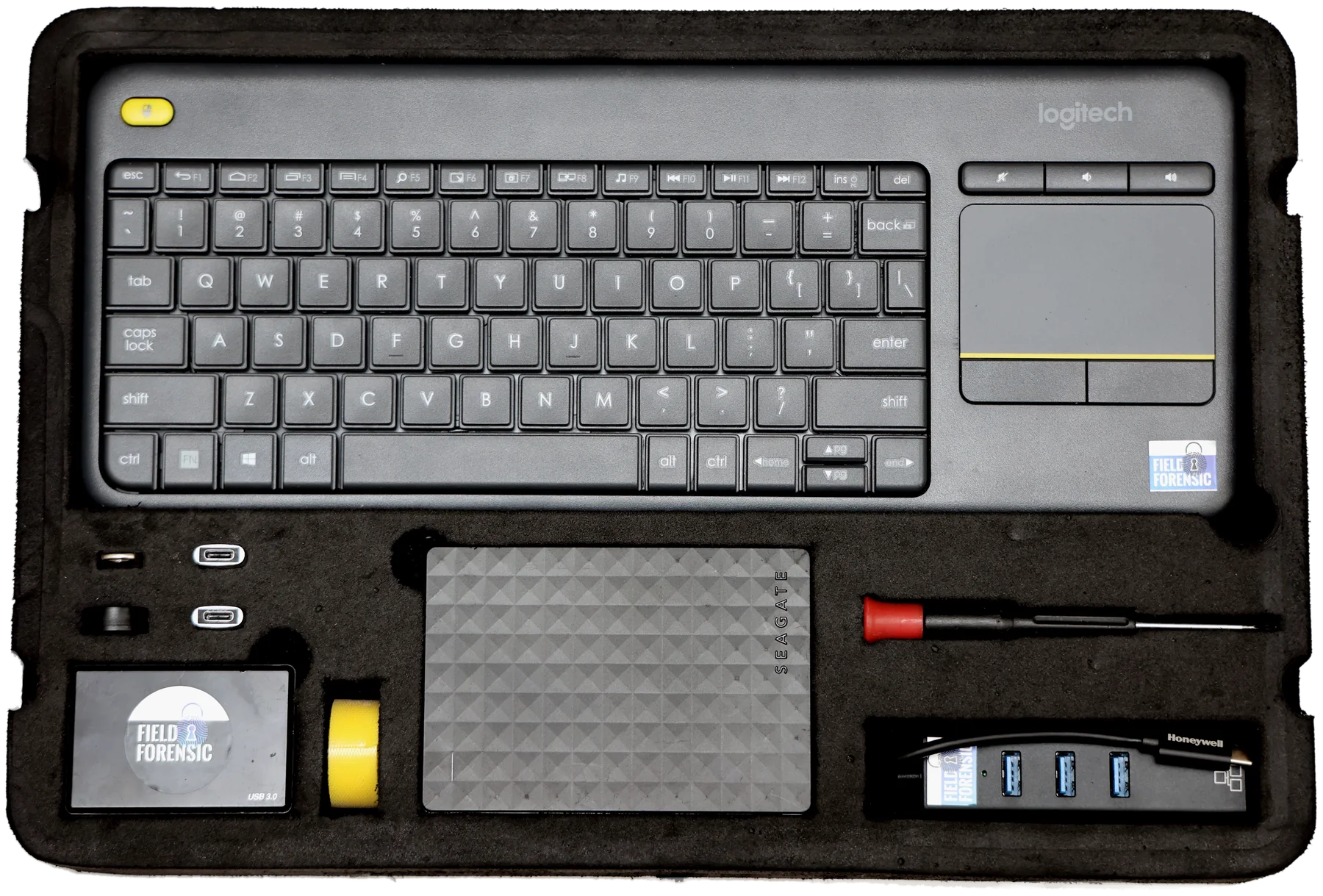

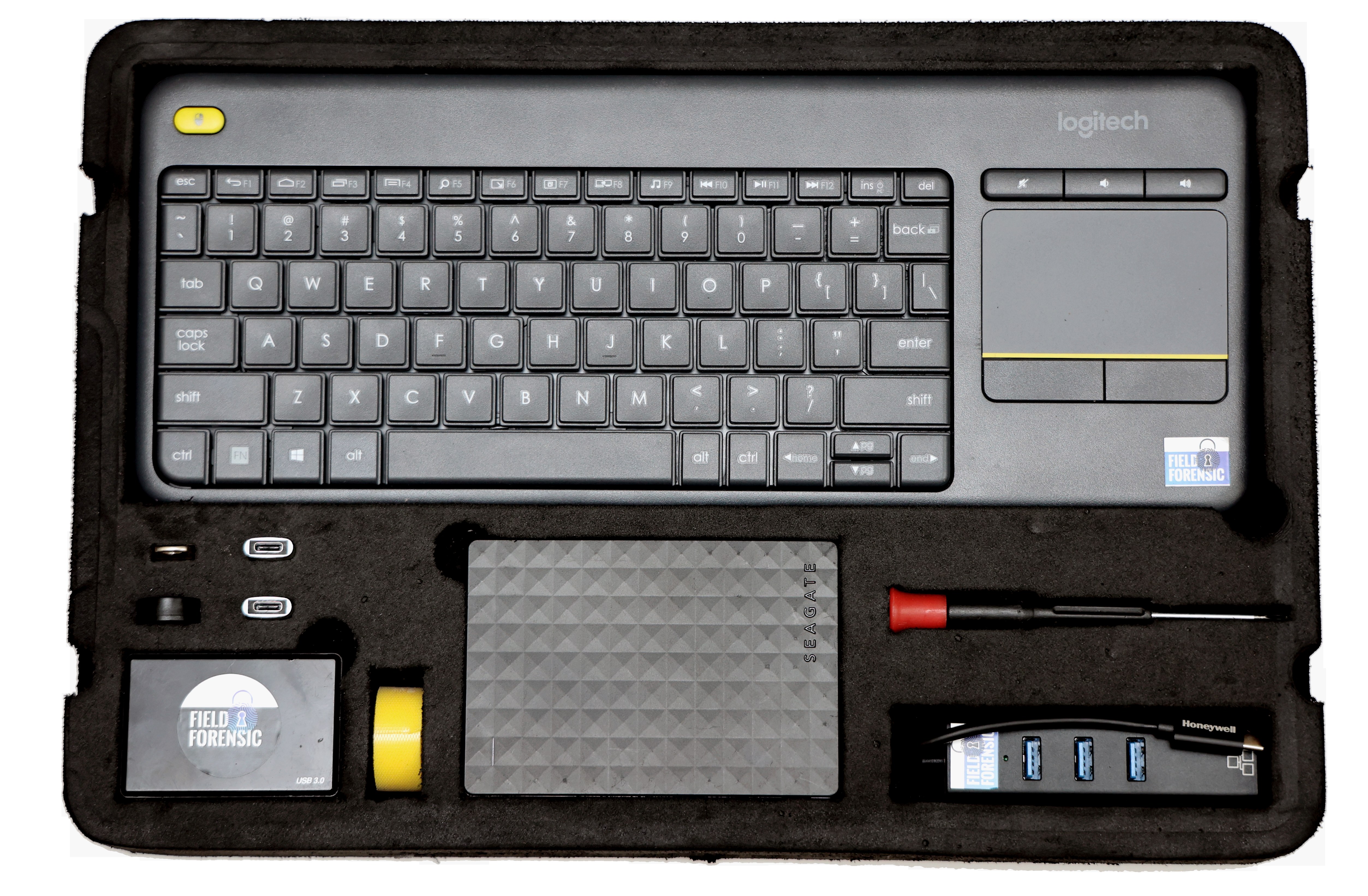

Accessory Kit
Included in the box
Field Forensic Nano
Compact Forensic Acquisition & Cloning Node · AMD or Intel
Designed for forensic professionals for on-site acquisition, examination, cloning, imaging, wiping and data recovery — your forensic analytics with 100% assurance, in a case the size of a lunchbox.
At just 2.6 kg and IP67-rated when closed, the Nano packs a full acquisition workstation — 7" touch display, internal write blocker, 32 GB RAM and 1 TB NVMe — into a backpack-portable case.
2 CPU Variants
AMD Ryzen V1202B or Intel i5 7th Gen (Kaby Lake) — 2 cores, 4 threads, up to 3.5 GHz.

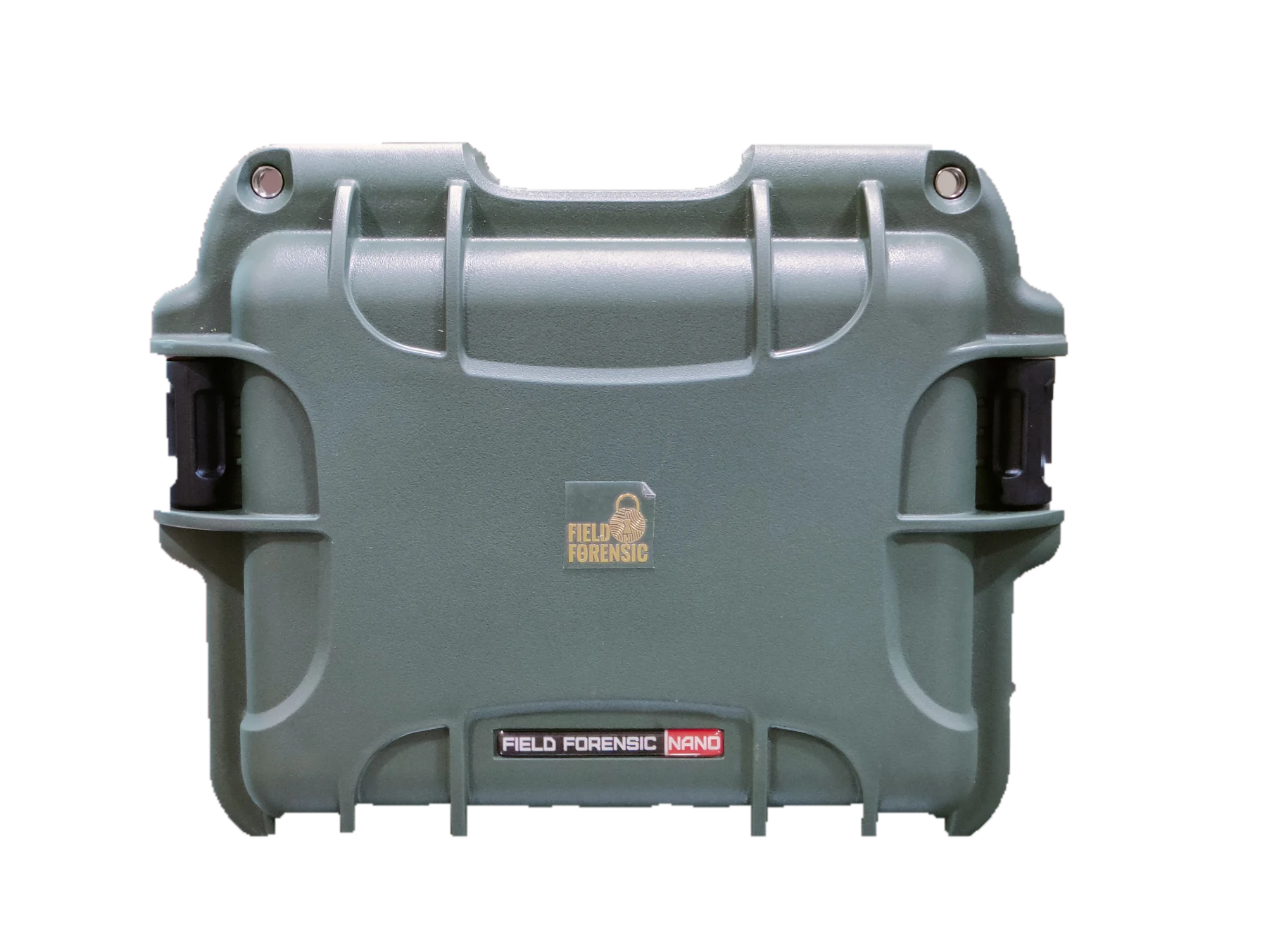

IP67 When Closed
Rugged, light-weight enclosure at just 2.6 kg — dust and water resistant when latched shut.
7" Touch Display
Built-in 1024×600 touchscreen — operate the entire acquisition without an external monitor.
32 GB RAM + 1 TB NVMe
Ample headroom for on-site acquisition, hashing and analysis workloads.
Internal Write Blocker
1× SATA/IDE write blocker built directly into the unit — forensically sound acquisition, no external hardware.
Dual SATA + USB 3.0
2× SATA Gen 3.0 ports plus 2× USB 3.0 ports for multi-source acquisition.
GbE LAN + DisplayPort
Gigabit Ethernet (RJ45) for network upload plus a DisplayPort output for an external monitor.
Wi-Fi & Bluetooth Ready
Dongle-based Wi-Fi and Bluetooth connectivity keep the enclosure sealed while staying field-flexible.
Backpack Portable
Ships in a dedicated backpack carry case — grab it and go, no cart or crate required.

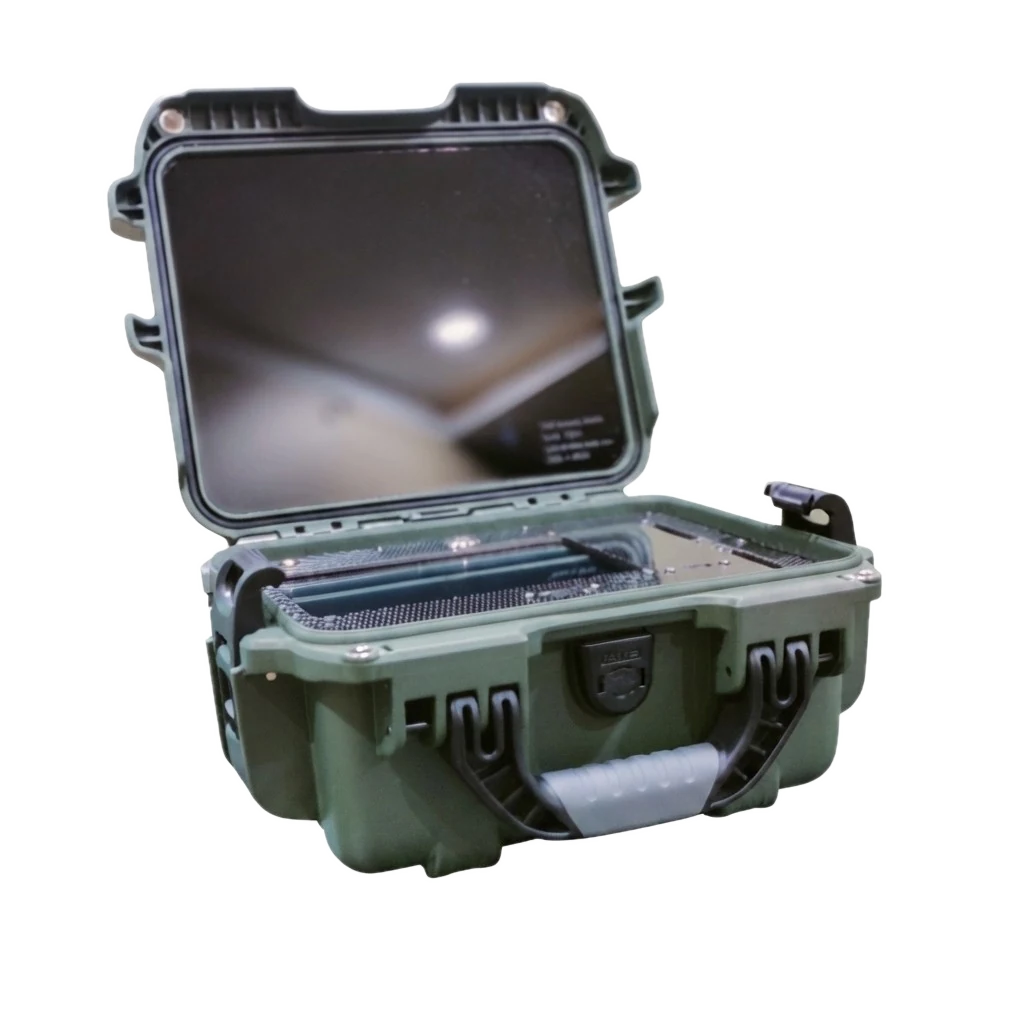

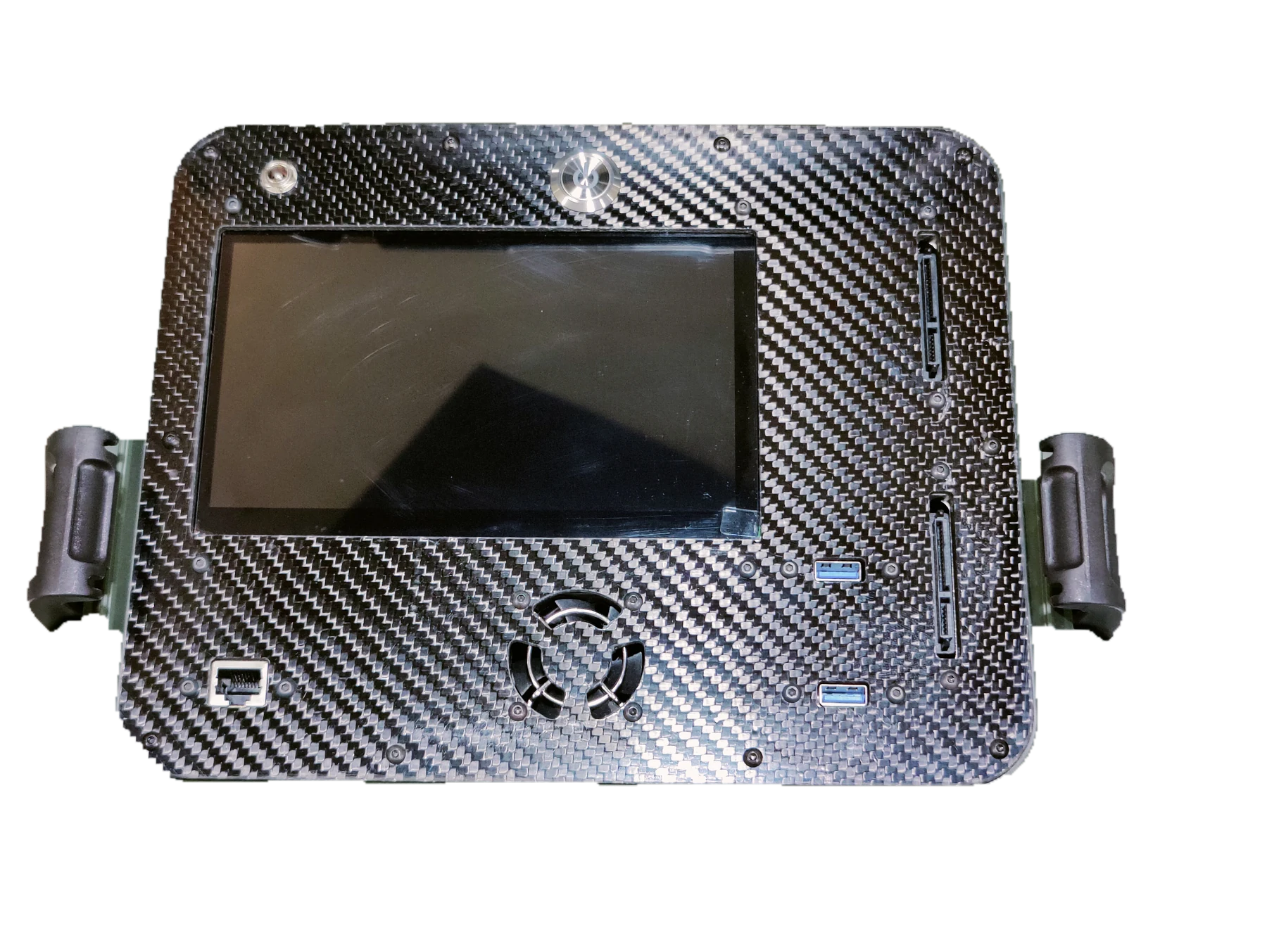

Every port within reach, nothing left behind
The carbon-fiber fascia houses the touch display, power button, cooling fan and every acquisition port on a single panel. Two hot-swap SATA Gen 3.0 bays sit beside the internal write blocker, so evidence drives connect directly — no loose adaptors to misplace in the field.
Preloaded with Windows 10 Pro 64-bit and a forensic imaging, cloning, wiping and data recovery suite, the Nano is built for drive imaging, drive cloning, drive wiping, data recovery and mobile acquisition.
Software & OS
Windows 10 Pro 64-bit
Factory-installed operating system, ready to run on first boot.
Imaging, Cloning & Wiping Suite
Drive imaging, drive cloning, drive wiping and data recovery — built for mobile acquisition.
Power & Connectivity
Universal AC Adapter
AC input 100V–240V, DC output 12.0V @ 5A — runs anywhere in the world.
Wi-Fi & Bluetooth Dongles
Add wireless connectivity on demand without permanent antenna cut-outs.
Gigabit LAN + DisplayPort
RJ45 Gigabit Ethernet for secure network upload, DP out for an external display.
Ports & Interfaces
Built-In Ports
Write Blocker
Wireless (Dongle)
Hardware Specifications
2.6 kg
12.5" × 10.1" × 6"
IP67 (when closed)
Accessory Kit
Included in the boxThe Nano ships ready to deploy — power adapter, extension cables and an input device are all included, packed into the dedicated backpack carry case.
Equip your mobile forensic unit
Talk to our team about the right Field System configuration for your operations — vehicle integration, software bundling and training available.
